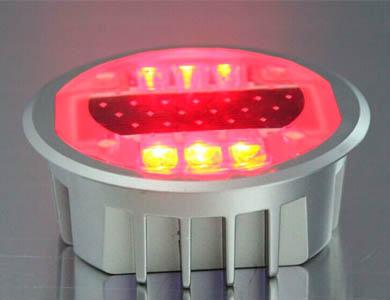

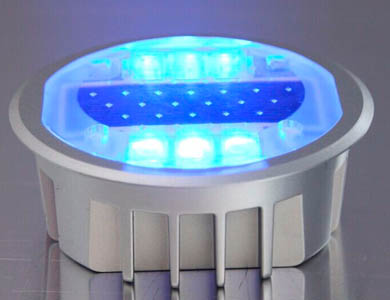

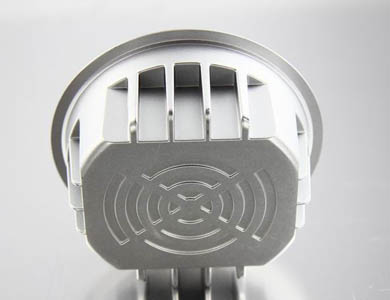

Embedded LED Solar Road Stud Embedded LED Solar Road Stud

Features of embedded LED solar road stud:

- Easy installation, no maintenance
- Saves power, no additional expenses, environmentally friendly, no pollution
- Can work more than 3 years normally
- Solar energy-based power source
- Brightness sensitive auto-switch, automatically turns on at night and turns off at dawn
- It can load-bearing 30 tons
- Waterproof and unbreakable: Solar panel, electronics and optics are fitted inside


Body material: Cast Aluminum
Power supply: 2.5V/180MAH Monocrystalline silicon
Battery: NI-MH 1.2V/600MAH
LED: 3pcs/side φ10mm super brightness LED
LED Color: White Green Red Yellow Blue
Flashing model: flashing(2Hz±20%)or constant
Working hours: 180 hours for battery for flashing modes,40hours for steady modes
Visual distance: 1000m(approx)
Waterproof: IP68
Load capacity  >30T(can be installed in the middle of road)

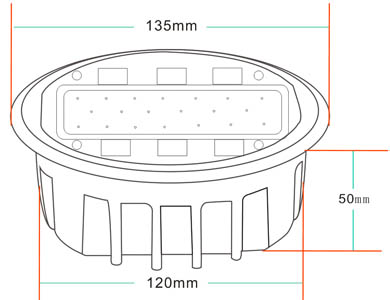

Size: Ф120*50mm(bottom)
Weight: 700g

Life span: 3-5 years with battery
Working Temperature -25°C~ + 75°C


Embedded LED Solar Road Stud Embedded LED Solar Road Stud

- Positioning:Road stud install place must to be flat, dry, clean, seamless
- Stick with glue:using the proper quantity glue, stick on the ground firm, after installation, please turn the road - stud left and right once again to ensure the road studs paste on the road uniform
- Road closures:Must be 6 hours of road closures to ensure the glue curing time
